OVAL (45°+25°) Archives

Linear Light → Spot fixed

Plank Optics P4

LED/m P4 → 26 LED/m • 8 LED/ft

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 27,5 W/m • 8,38 W/ft

Datasheet LDT / IES DWG Instructions

14.0 × 12.6 mm

0.55 × 0.50 "

Linear Light → Spot fixed

LED 2 LED/Module

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/spot 2,3 W × Module

Datasheet DWG Instructions

14.0 × 12.6 × 70.0 mm

0.55 × 0.50 × 2.76 "

Linear Light → Spot fixed

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet LDT / IES DWG Instructions

18.3 × 12.3 mm

0.72 × 0.48 "

Linear Light → Spot fixed

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics Reflector 70° • 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet LDT / IES DWG Instructions

18.3 × 19.0 mm

0.72 × 0.75 "

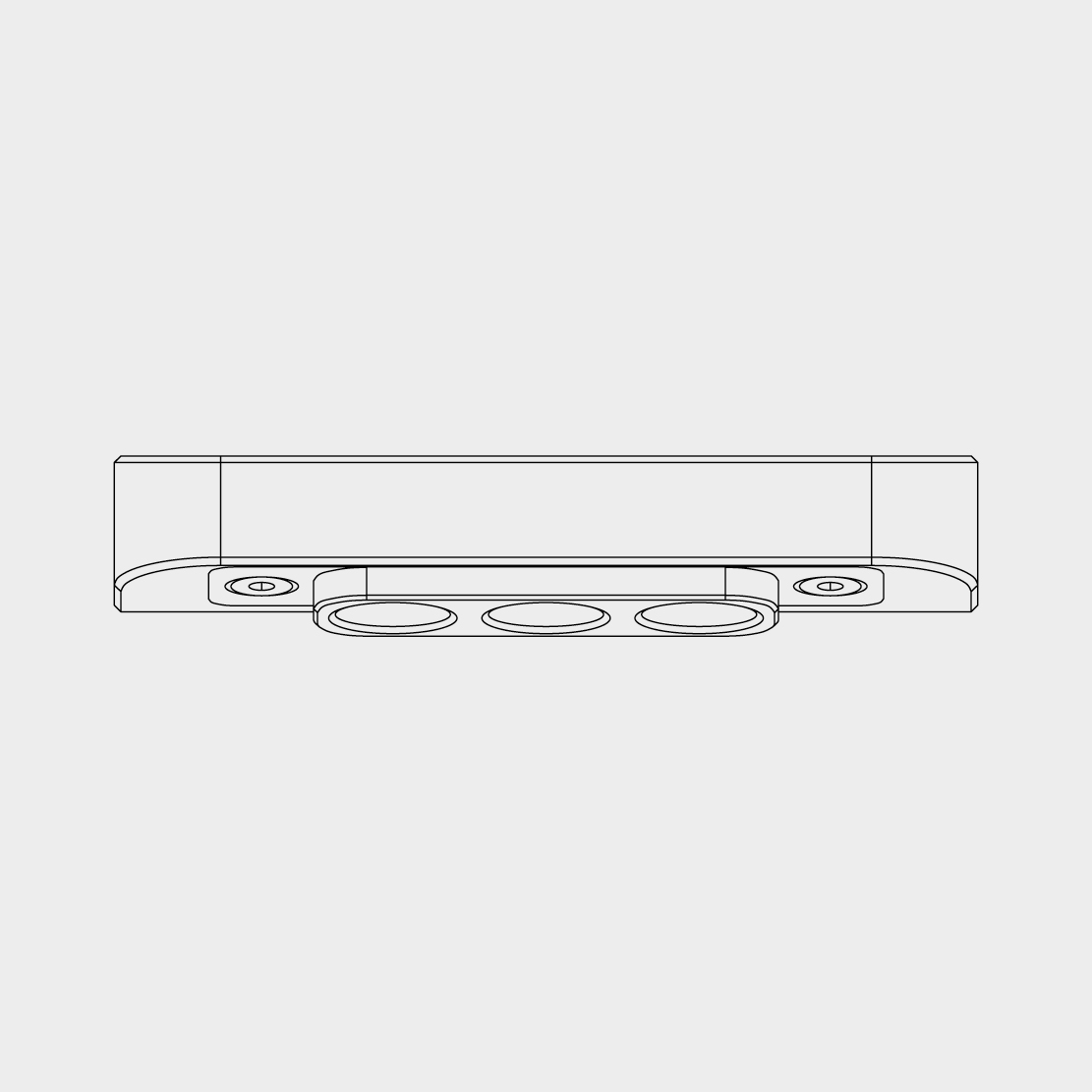

Spotlight

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

Power consumption 3,0 - 3,4 W

Datasheet LDT / IES DWG Instructions

65.0 × 16.3 × 9.80 mm

2.56 × 0.64 × 0.39 "
