Linear Light → Recessed

Mirage

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 56 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions

22.5 × 10.0 mm

0.89 × 0.39 "

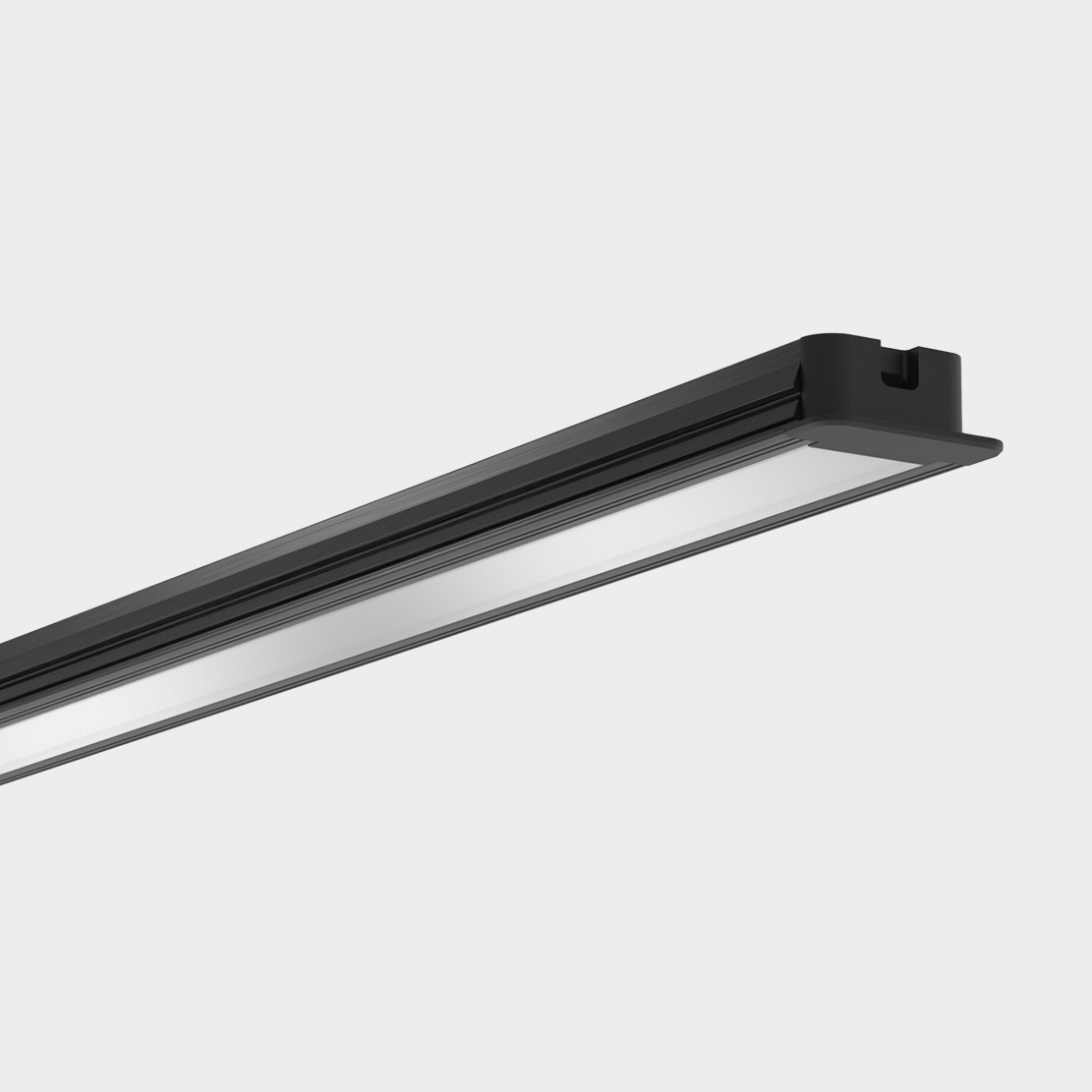

Linear Light → Recessed

Mirage P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

22.5 × 10.0 mm

0.89 × 0.39 "

Linear Light → Recessed

Plano

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 56 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions

24.0 × 14.0 mm

0.94 × 0.55 "

Linear Light → Recessed

Nevada

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 56 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions

46.5 × 38.0 mm

1.83 × 1.50 "

Linear Light → Recessed

Nevada P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

46.5 × 38.0 mm

1.83 × 1.50 "
