Linear Light → Spot fixed

Plank Optics P4

LED/m P4 → 26 LED/m • 8 LED/ft

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 26,0 W/m • 7,92 W/ft

Datasheet LDT DWG Instructions

14.0 × 12.6 mm

0.55 × 0.50 "

Linear Light → Spot fixed

LED 2 LED/Module

LED/m P4 → 26 LED/m • 8 LED/ft

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/spot 2,0 W (2 × 1 W)

Datasheet DWG Instructions

14.0 × 12.6 × 70.0 mm

0.55 × 0.50 × 2.76 "

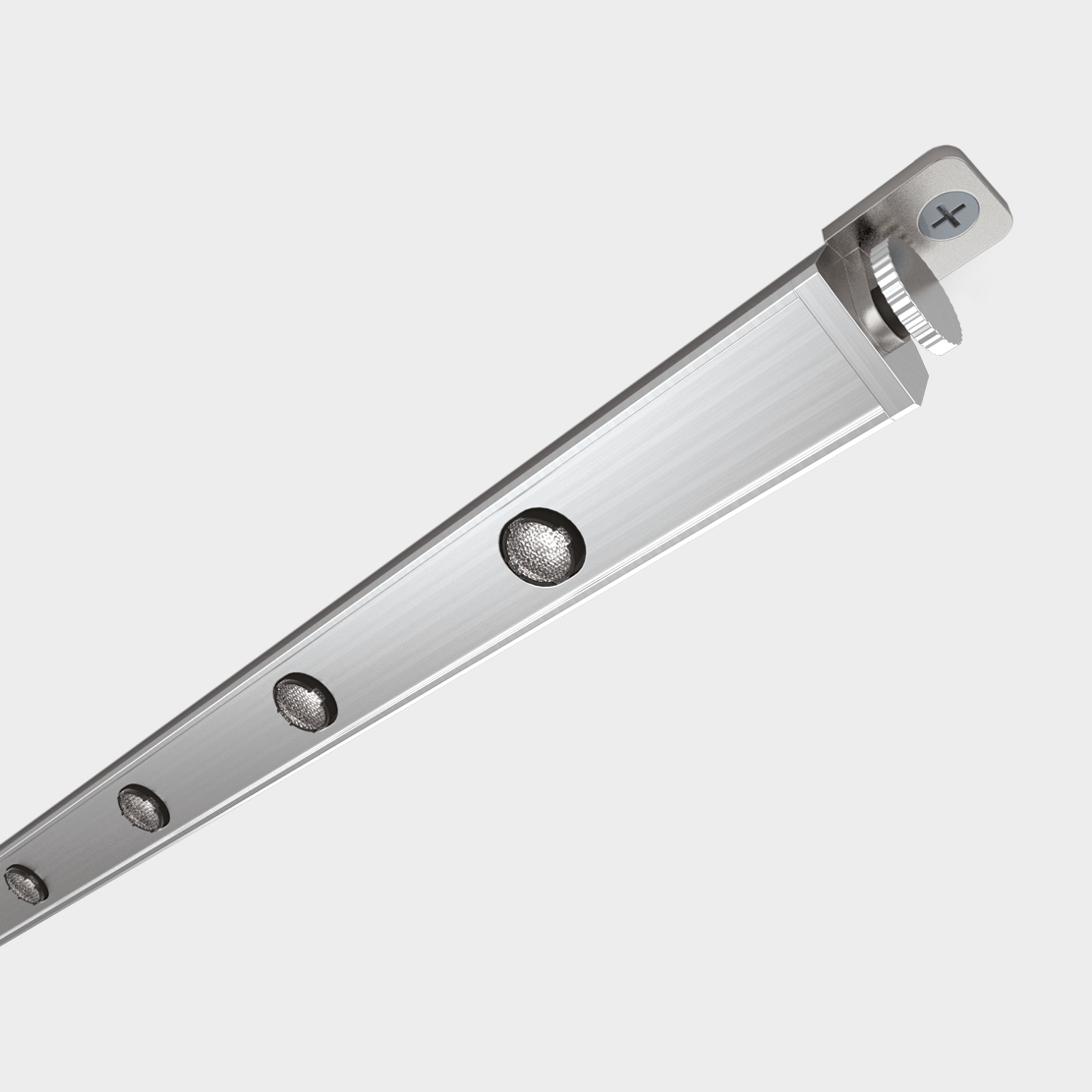

Linear Light → Spot fixed

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet LDT DWG Instructions

18.3 × 12.3 mm

0.72 × 0.48 "

Linear Light → Spot fixed

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics Reflector 70° • 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

18.3 × 19.0 mm

0.72 × 0.75 "

Linear Light → Spot fixed

LED/m P5 → 18 LED/m • 5 LED/ft

Optics 10° • 19° • 28° • 41° • OVAL (37°+15°)

W/m • W/ft 19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

27.4 × 20.0 mm

1.08 × 0.79 "
