Linear Light → Simmetric

133 P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

18.3 × 19.0 mm

0.72 × 0.75 "

Linear Light → Angled

Tokio P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

19.5 × 19.5 mm

0.77 × 0.77 "

Linear Light → Recessed

Mirage P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

22.5 × 10.0 mm

0.89 × 0.39 "

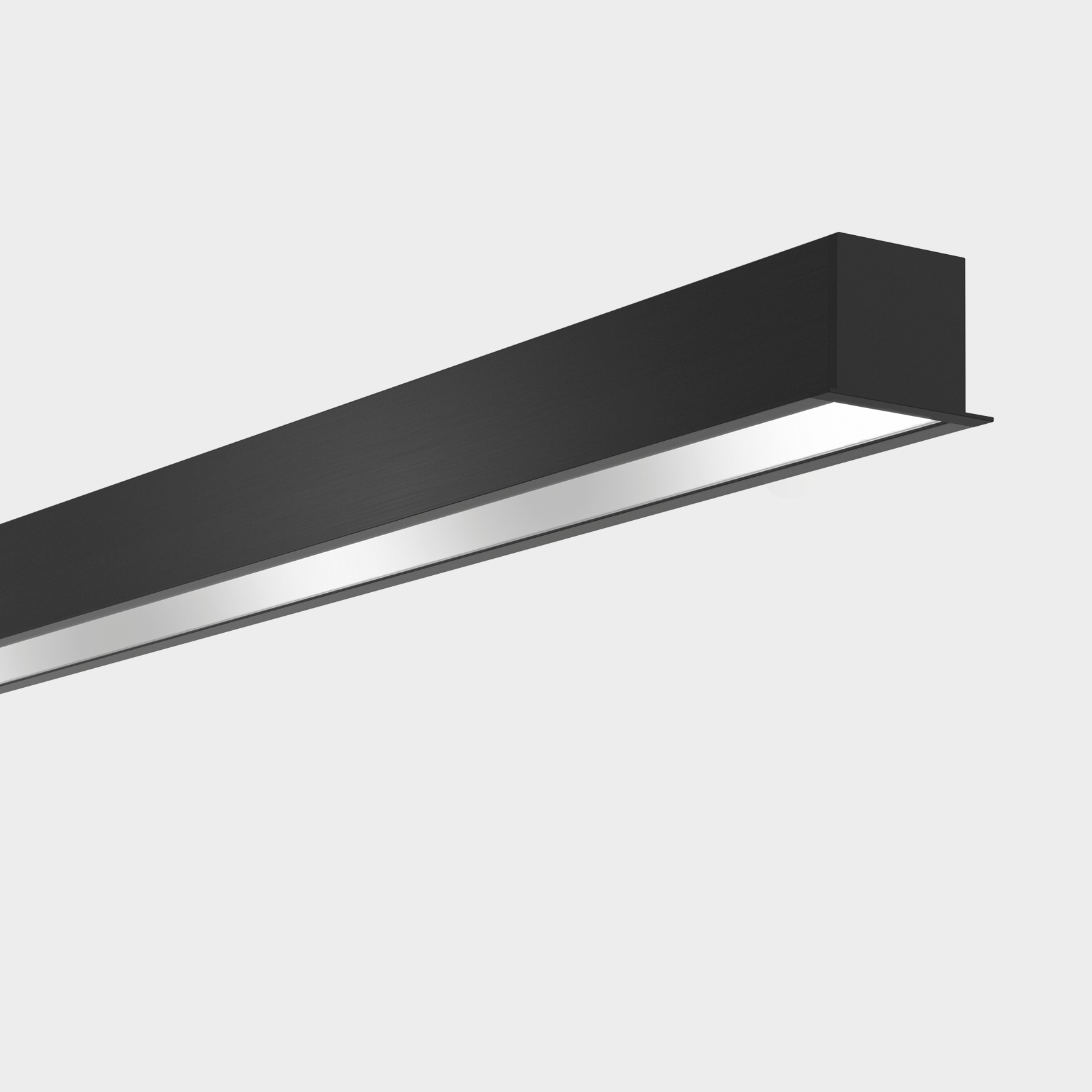

Linear Light → Recessed

Nevada P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

46.5 × 38.0 mm

1.83 × 1.50 "

Linear Light → Spot fixed

Hida P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet LDT DWG Instructions

18.3 × 12.3 mm

0.72 × 0.48 "

Linear Light → Spot fixed

133 Lens Optics P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics Reflector 70° • 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

18.3 × 19.0 mm

0.72 × 0.75 "

Linear Light → Spot fixed

Lensbar Square P5

LED/m P5 → 18 LED/m • 5 LED/ft

Optics 10° • 19° • 28° • 41° • OVAL (37°+15°)

W/m • W/ft 19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

27.4 × 20.0 mm

1.08 × 0.79 "

Showcase Light

Phoenix Bridge P5

W/m • W/ft 19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

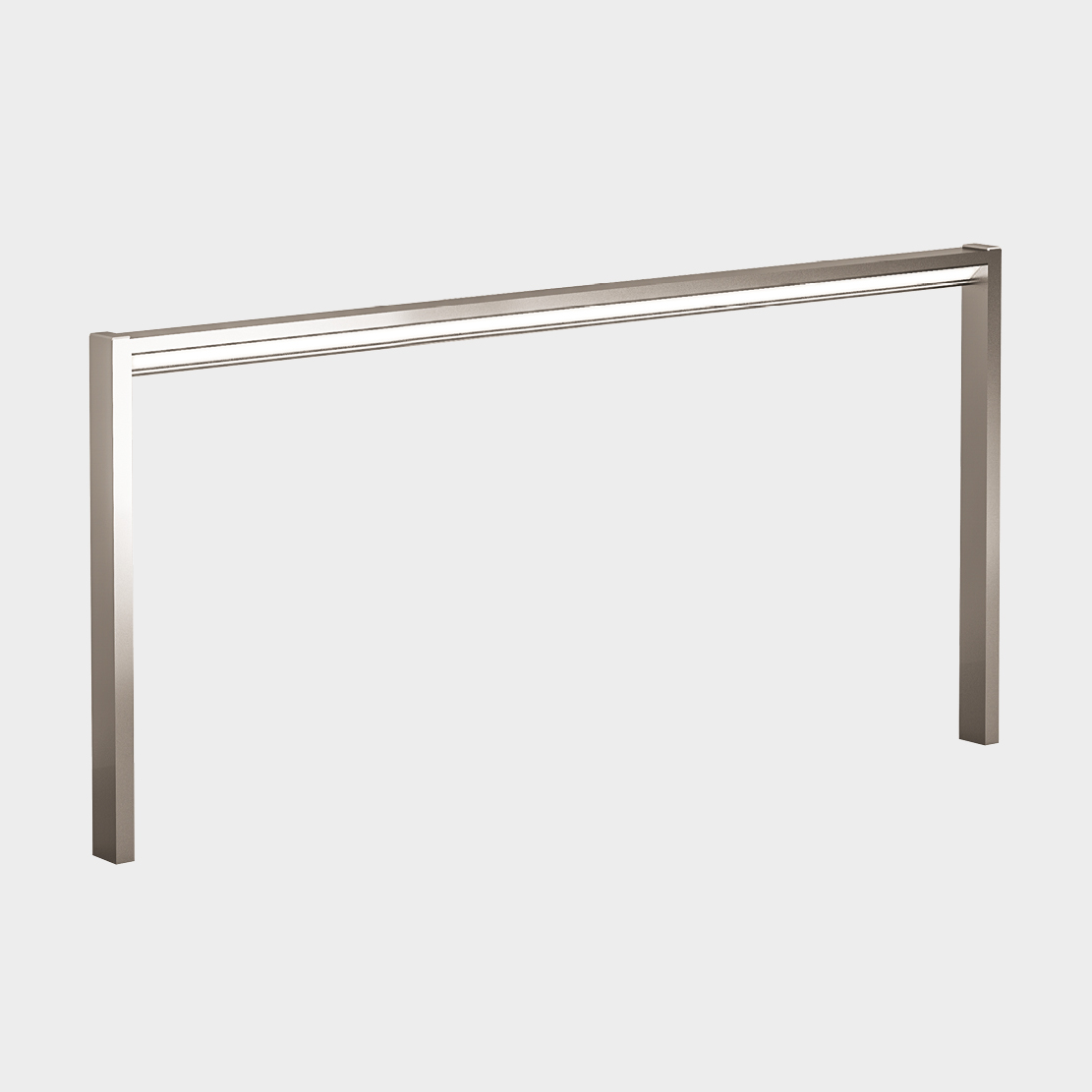

Showcase Light

Tokio Bridge

LED/m P5 → 18 LED/m • 5 LED/ft
168 LED/m • 52 LED/ft

W/m • W/ft 15,0 W/m • 4,6 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions
