Linear Light → Asymmetric

Zaira

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet LDT / IES DWG Instructions Suggested Lengths

18.0 × 18.5 mm

0.71 × 0.73 "

Linear Light → Asymmetric, Recessed

NIK

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions

17.0 × 13.0 mm

0.67 × 0.51 "

Linear Light → Asymmetric, Curved

Glider

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet LDT / IES DWG Instructions Suggested Lengths

Curved available

20.0 × 15.0 mm

0.79 × 0.59 "

Linear Light → Recessed

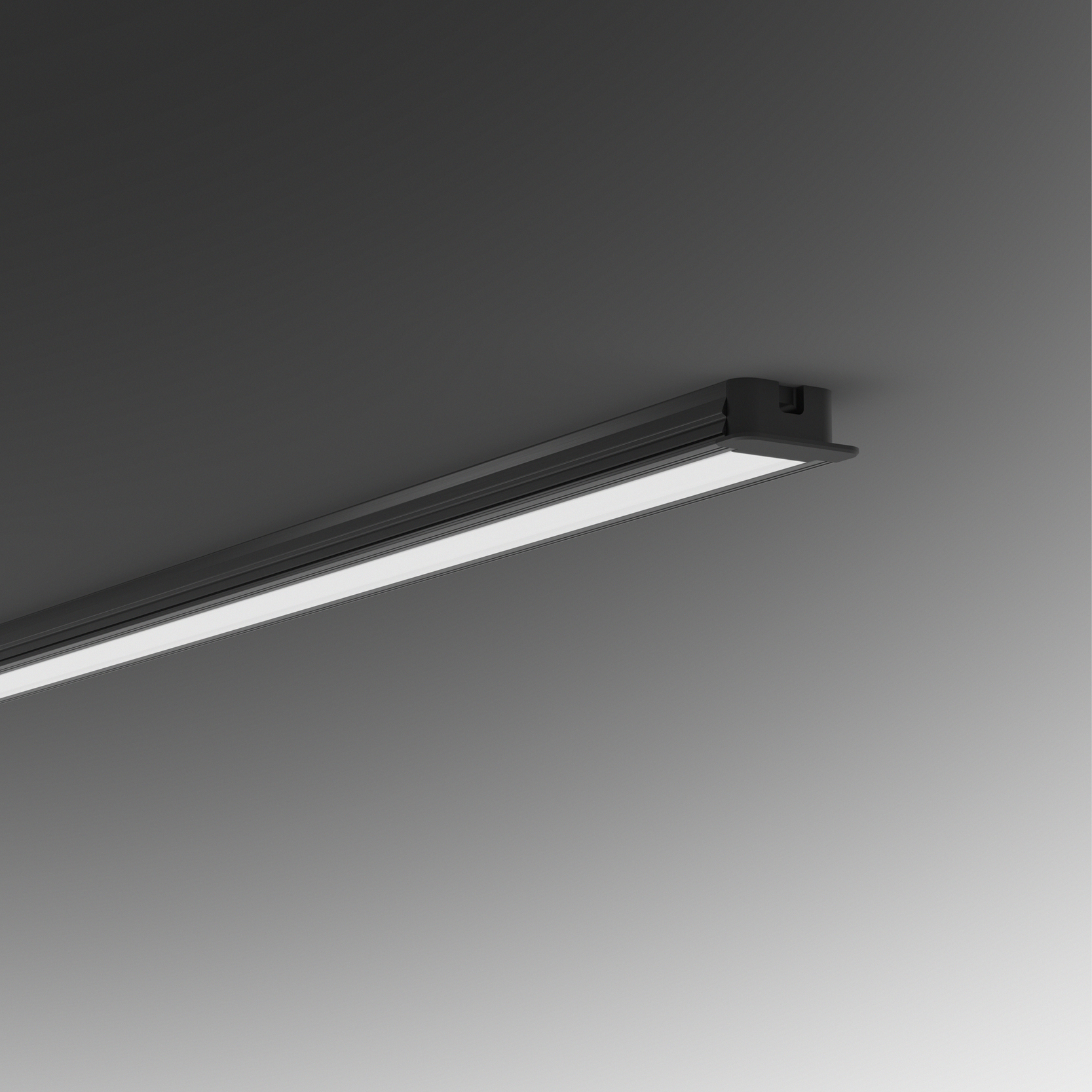

Mirage

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions

22.5 × 10.0 mm

0.89 × 0.39 "

Linear Light → Recessed

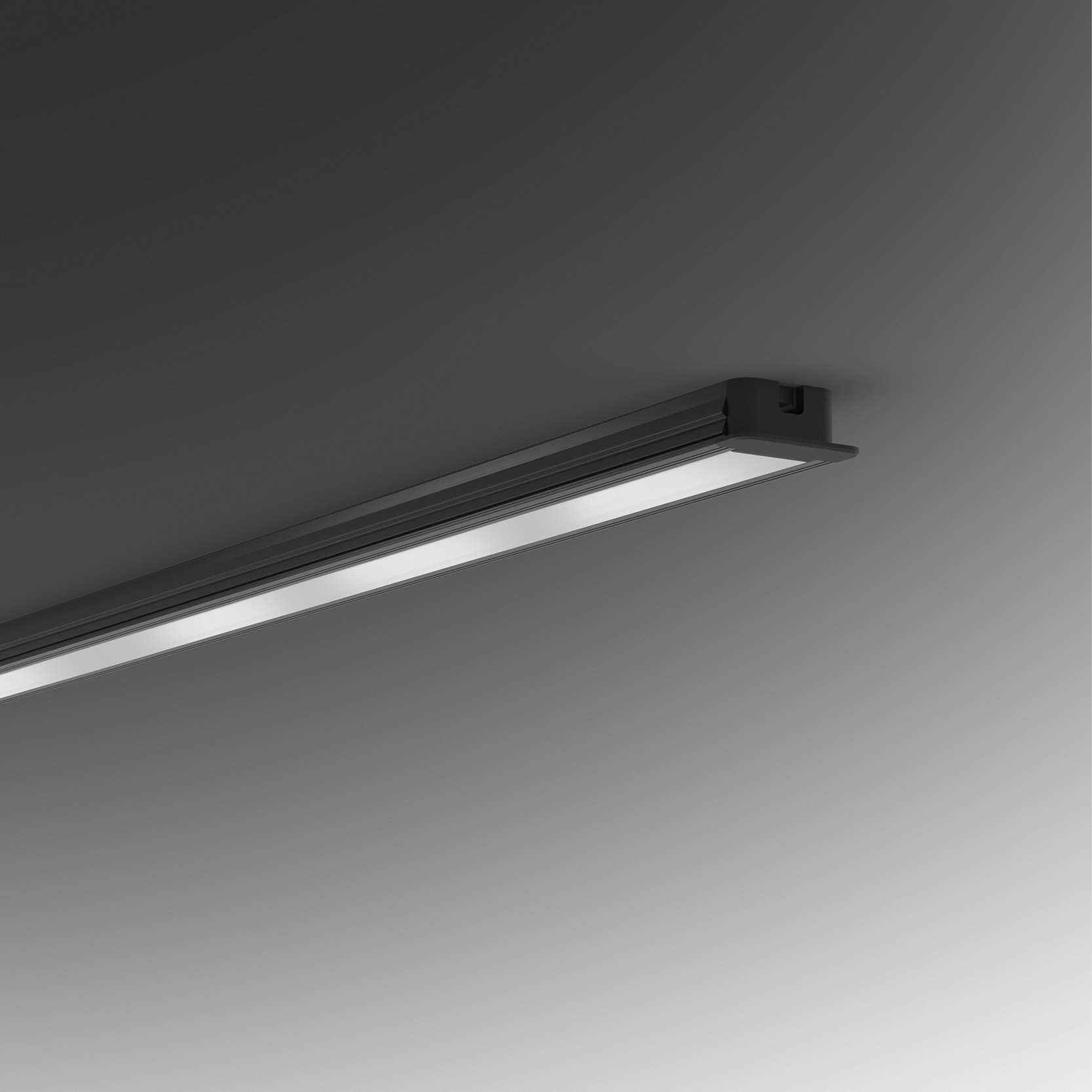

Mirage P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

22.5 × 10.0 mm

0.89 × 0.39 "

Linear Light → Recessed

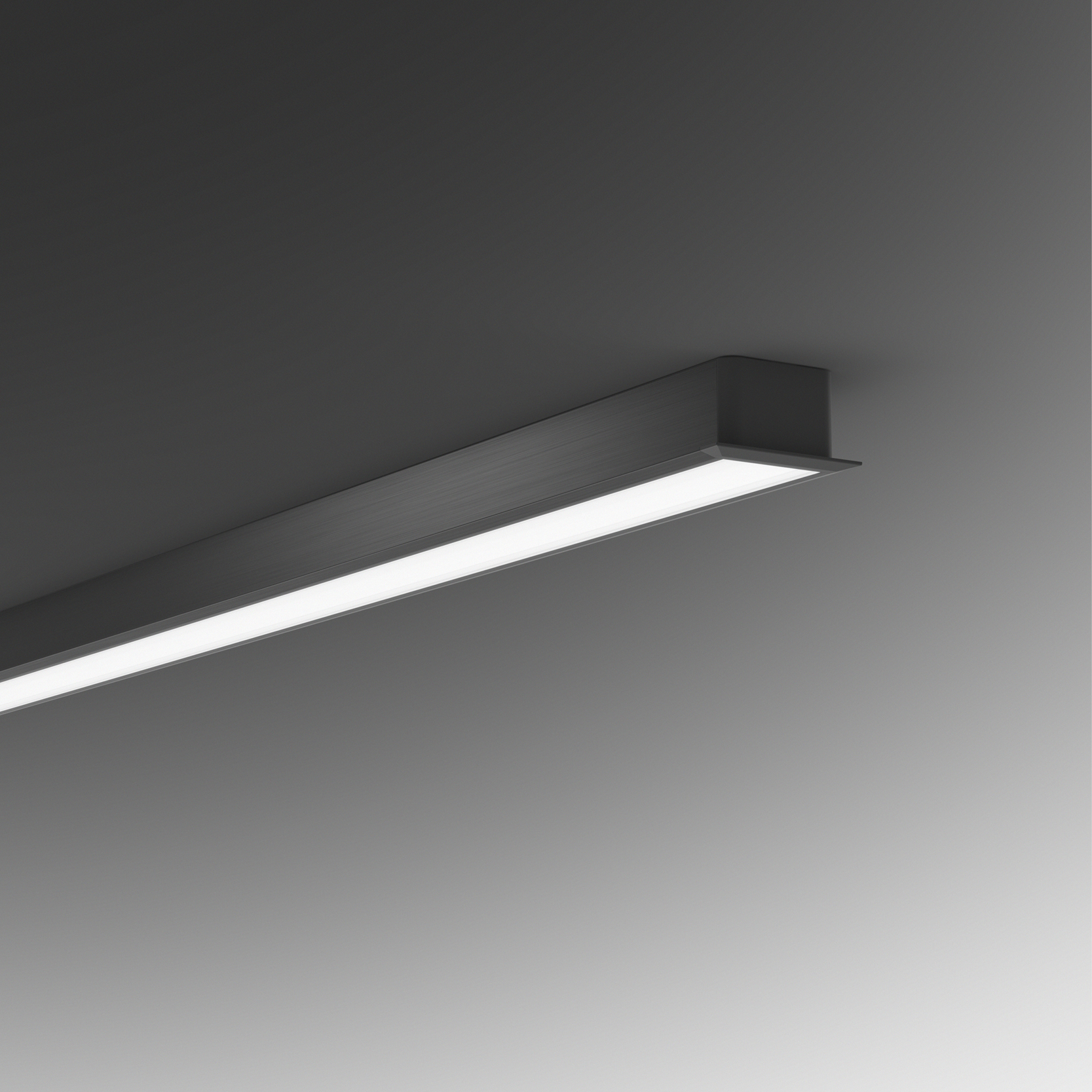

Plano

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions

24.0 × 14.0 mm

0.94 × 0.55 "

Linear Light → Recessed

Nevada

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions

46.5 × 38.0 mm

1.83 × 1.50 "

Linear Light → Recessed

Nevada P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions

46.5 × 38.0 mm

1.83 × 1.50 "

Linear Light → Spot fixed

Plank Optics P4

LED/m P4 → 26 LED/m • 8 LED/ft

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/m • W/ft 27,5 W/m • 8,38 W/ft

Datasheet LDT / IES DWG Instructions

14.0 × 12.6 mm

0.55 × 0.50 "

Linear Light → Spot fixed

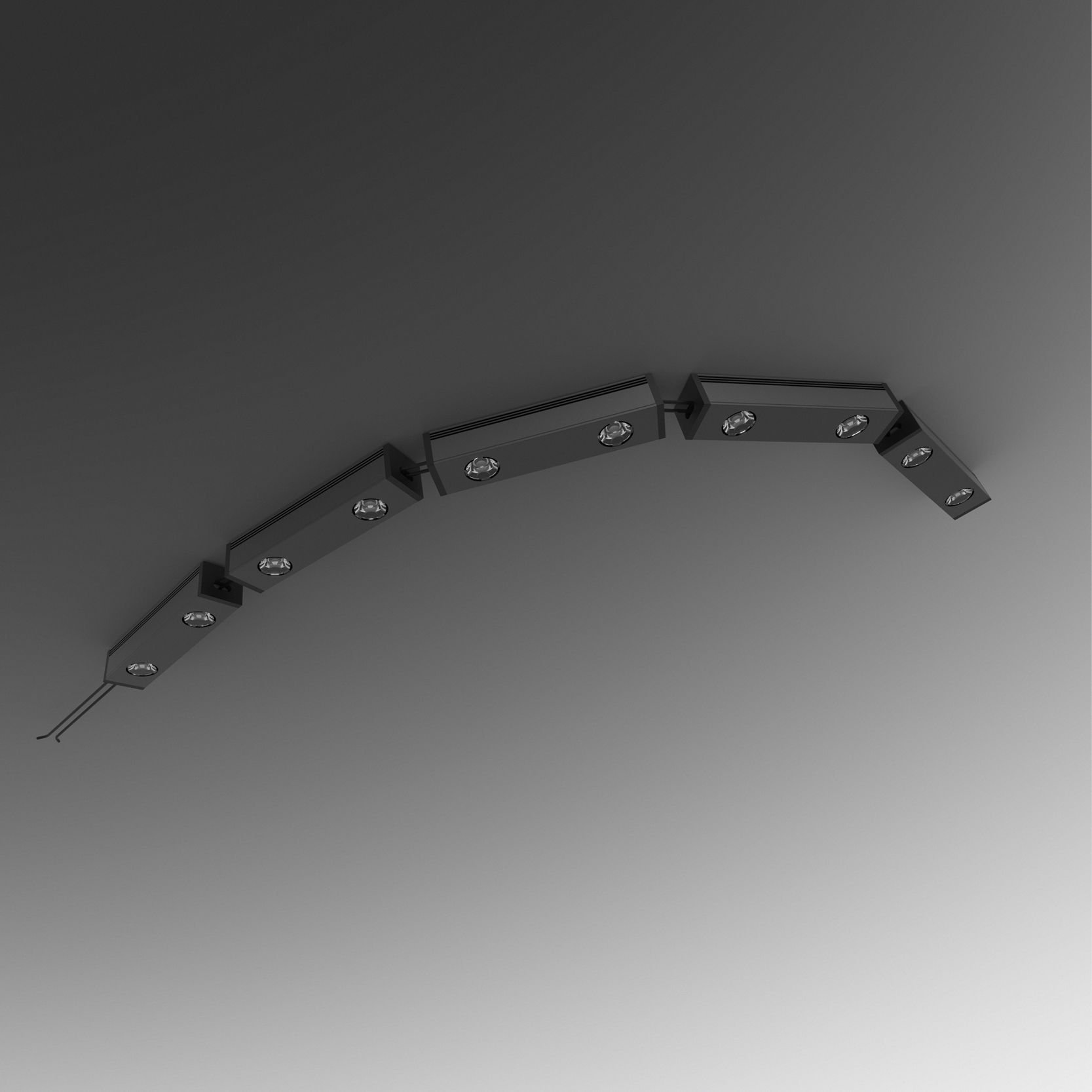

Plank Optics P4 Chain

LED 2 LED/Module

Optics 20° • 25° • 38° • 44° • OVAL (45°+25°) • 62°

W/spot 2,3 W × Module

Datasheet DWG Instructions

14.0 × 12.6 × 70.0 mm

0.55 × 0.50 × 2.76 "
