Linear Light → Asymmetric, Curved

Glider

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet LDT / IES DWG Instructions Suggested Lengths Cable outlet

UL Listed, Curved available

20.0 × 15.0 mm

0.79 × 0.59 "

Linear Light → Recessed

Mirage

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions Cable outlet

22.5 × 10.0 mm

0.89 × 0.39 "

Linear Light → Recessed

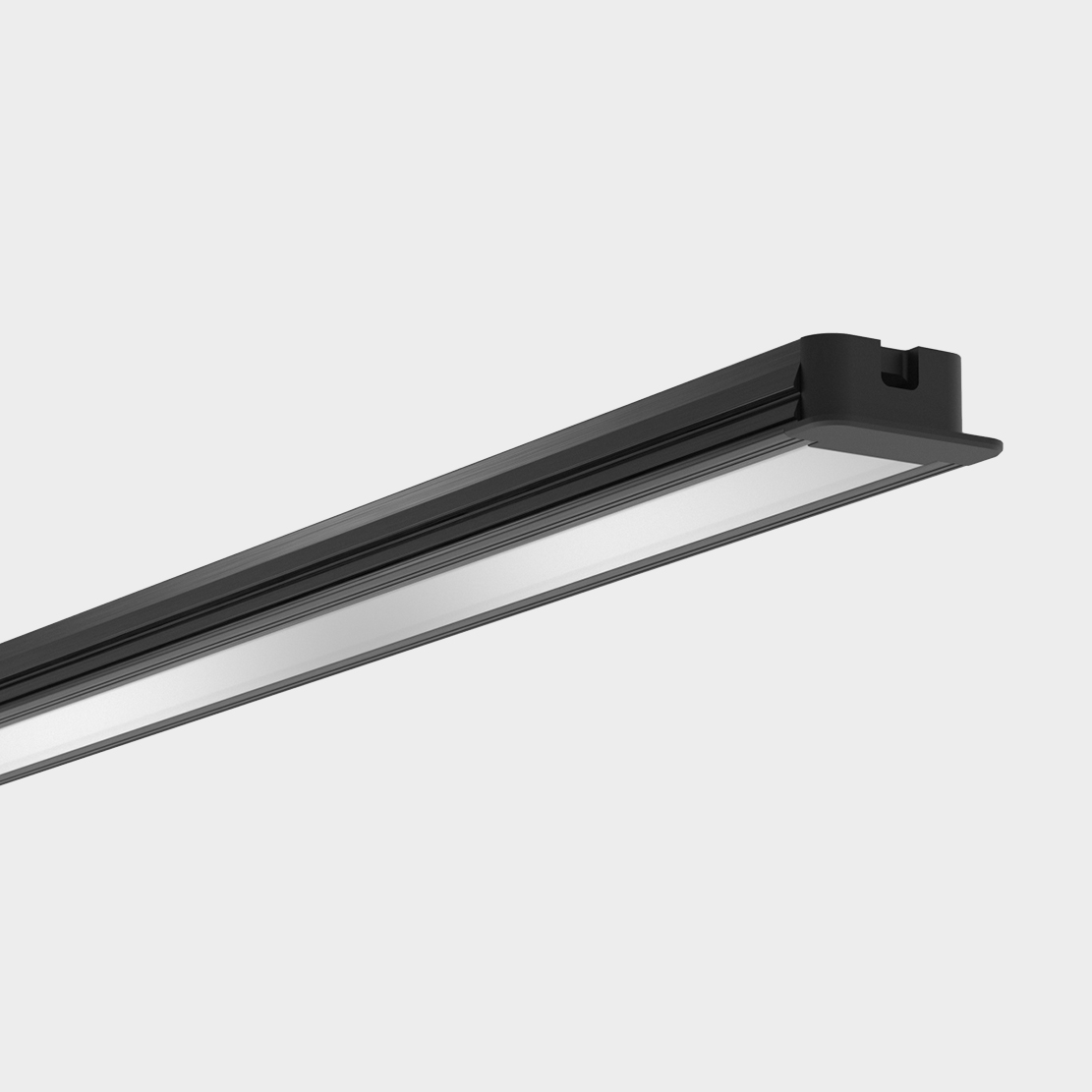

Mirage P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet DWG Instructions Cable outlet

22.5 × 10.0 mm

0.89 × 0.39 "

Linear Light → Recessed

Plano

LED/m 144 LED/m • 44 LED/ft
168 LED/m • 52 LED/ft
182 LED/m • 55 LED/ft
TW - 252 LED/m • 77 LED/ft Tunable white

W/m • W/ft 10,0 W/m • 3,1 W/ft
15,0 W/m • 4,6 W/ft
20,0 W/m • 6,1 W/ft
20,0 W/m • 6,1 W/ft TW

Datasheet DWG Instructions Cable outlet

24.0 × 14.0 mm

0.94 × 0.55 "

Linear Light → Spot fixed, Wall Washer/Grazer

Plank Optics P4

LED/m P4 → 26 LED/m • 8 LED/ft

Optics 20° • 25° • 38° • 44° • 62° • OVAL (45°×25°)

W/m • W/ft 27,5 W/m • 8,38 W/ft

Datasheet LDT / IES DWG Instructions Cable outlet

UL Listed

14.0 × 12.6 mm

0.55 × 0.50 "

Linear Light → Spot fixed

Plank Optics P4 Chain

LED 2 LED/Module

Optics 20° • 25° • 38° • 44° • 62° • OVAL (45°×25°)

W/spot 2,3 W × Module

Datasheet DWG Instructions Cable outlet

UL Listed

14.0 × 12.6 × 70.0 mm

0.55 × 0.50 × 2.76 "

Linear Light → Spot fixed

Hida P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics 20° • 25° • 38° • 44° • 62° • OVAL (45°×25°)

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet LDT / IES DWG Instructions Cable outlet

18.3 × 12.3 mm

0.72 × 0.48 "

Linear Light → Spot fixed

133 Lens Optics P5/P7

LED/m P7 → 14 LED/m • 4 LED/ft
P5 → 18 LED/m • 5 LED/ft

Optics 20° • 25° • 38° • 44° • 62° • OVAL (45°×25°) • Reflector 70°

W/m • W/ft 15,4 W/m • 4,7 W/ft
19,8 W/m • 6,0 W/ft

Datasheet LDT / IES DWG Instructions Cable outlet

UL Listed

18.3 × 19.0 mm

0.72 × 0.75 "

Linear Light → Spot fixed, Wall Washer/Grazer

Lensbar Square P5

LED/m P5 → 18 LED/m • 5 LED/ft

Optics 10° • 19° • 28° • 41° • OVAL (37°×15°)

W/m • W/ft 19,8 W/m • 6,0 W/ft

Datasheet LDT / IES DWG Instructions Cable outlet

UL Listed

27.4 × 20.0 mm

1.08 × 0.79 "

Linear Light → Spot fixed

Play Box Chain Half Louver

LED 2 LED/Module

Optics 14° • 20° • 32° • 52°

W/spot 6,2 W × Module

Datasheet DWG

45.8 × 68.0 mm

1.80 × 2.68 "
